BSIDE HX3 Thermal Imager meets a compact handheld noncontact thermometer and infrared camera designed to reveal hidden hotspots quickly and safely. With a sharp 240×240 IR resolution and a bright 2.4-inch color display, you can see temperature variations clearly across circuits, pipes, buildings, and more. This versatile device supports 15 pseudo-color modes, adjustable emissivity from 0.01 to 1, and built-in data storage for easy analysis and reporting. It also features high/low temperature alarms, a laser indicator for precise targeting, and a sturdy IP54 / 1.5 m anti-drop design for demanding work conditions. The HX3 body is produced with a single injection molding process for great value, and it includes a high-quality EVA handbag for portable use.
Providing quality and trusted service since 2002 at intercyprus.com
Benefits & Tips
- Enhanced diagnostics: use the 240×240 IR image to quickly identify hot spots in electronics, electrical panels, and mechanical systems, reducing downtime and guesswork.
- Accurate readings: adjust emissivity (0.01–1) to match different materials, ensuring temperature readings reflect real conditions for reliable troubleshooting.

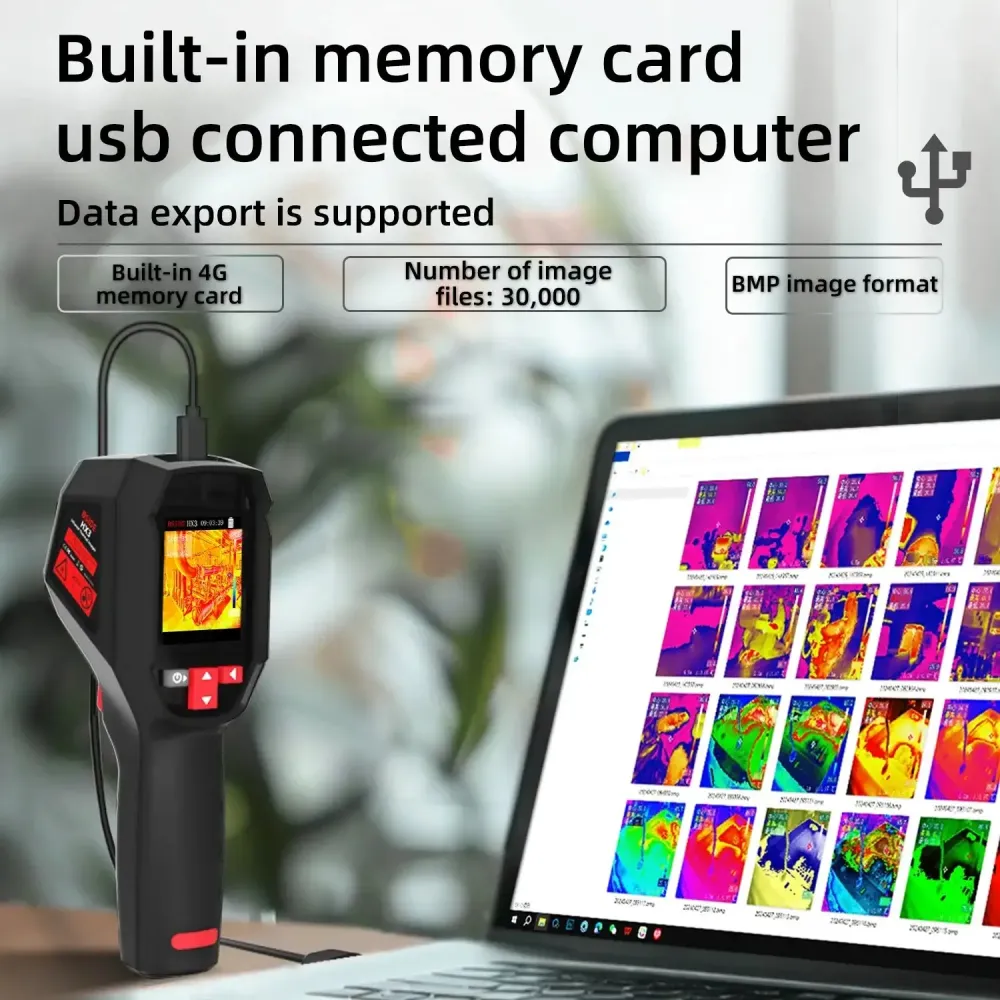

- On-site documentation: capture and store up to 30,000 images on the built-in storage, then export data for reports, QA, or maintenance logs. Use the laser indicator to point out hotspots during demonstrations or handoffs.
Product specifications
- IR resolution: 240 × 240

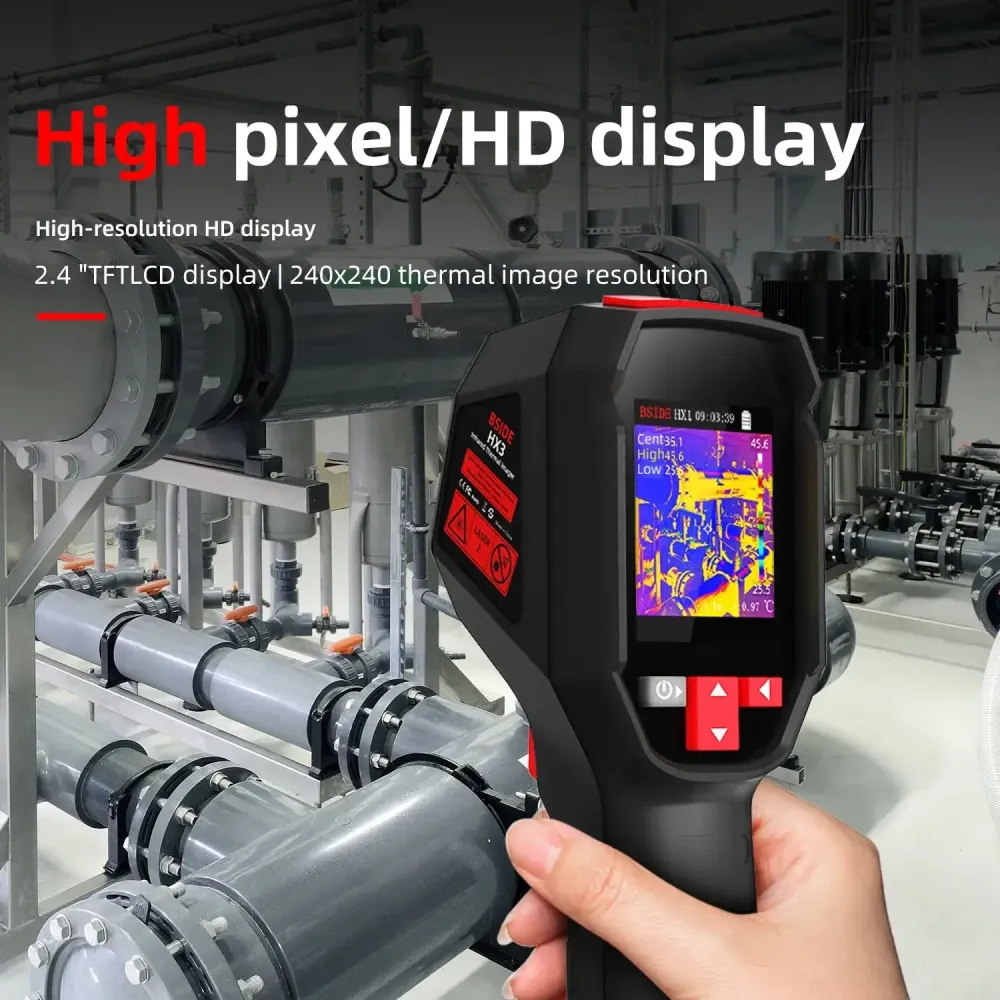

- Display: 2.4″ TFT color LCD
- Frame rate: 25 Hz

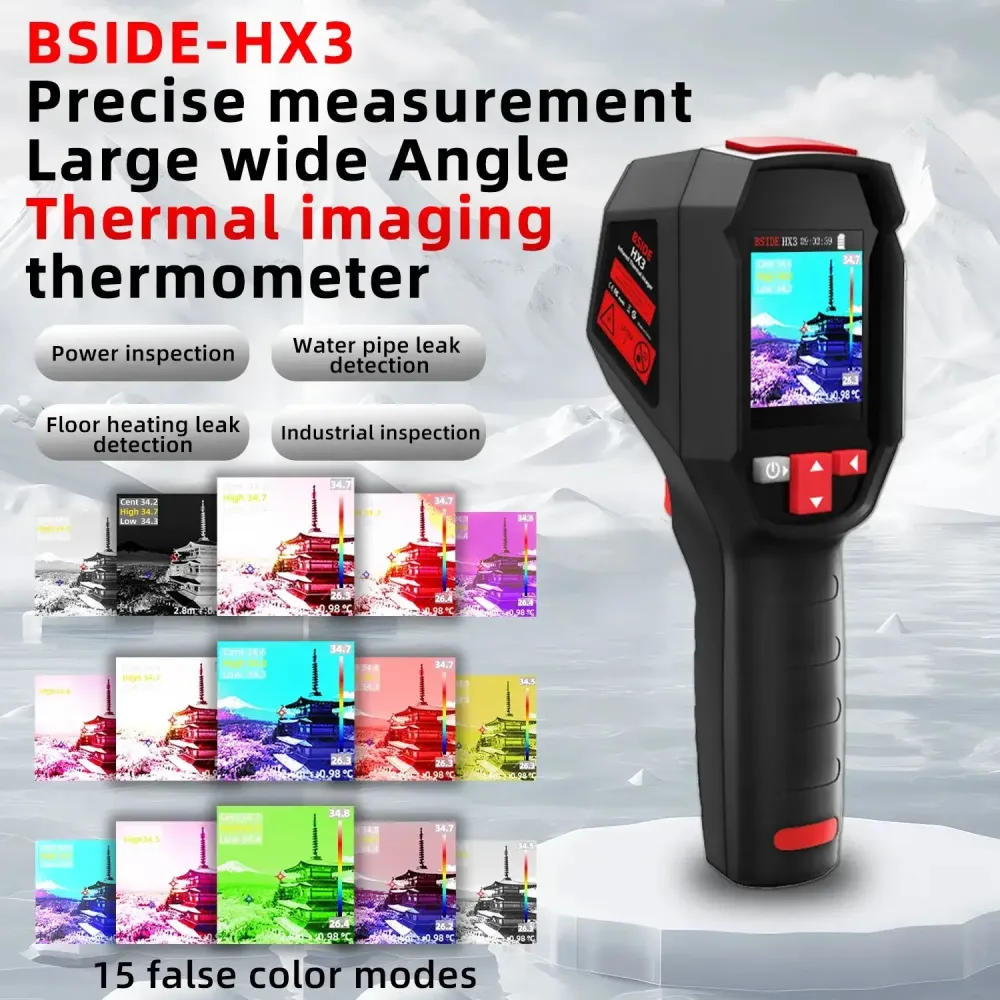

- Pseudo color modes: 15 types
- Temperature measurement range: -20 °C to 550 °C
- High/low temperature alarms: image, buzz, LED flashing
- Emissivity: adjustable from 0.01 to 1
- Storage: 4 GB built-in TF card
- Power: built-in 2500 mAh lithium battery
- Bottom design with tripod screw holes
- Protection: IP54 / 1.5 m anti-drop

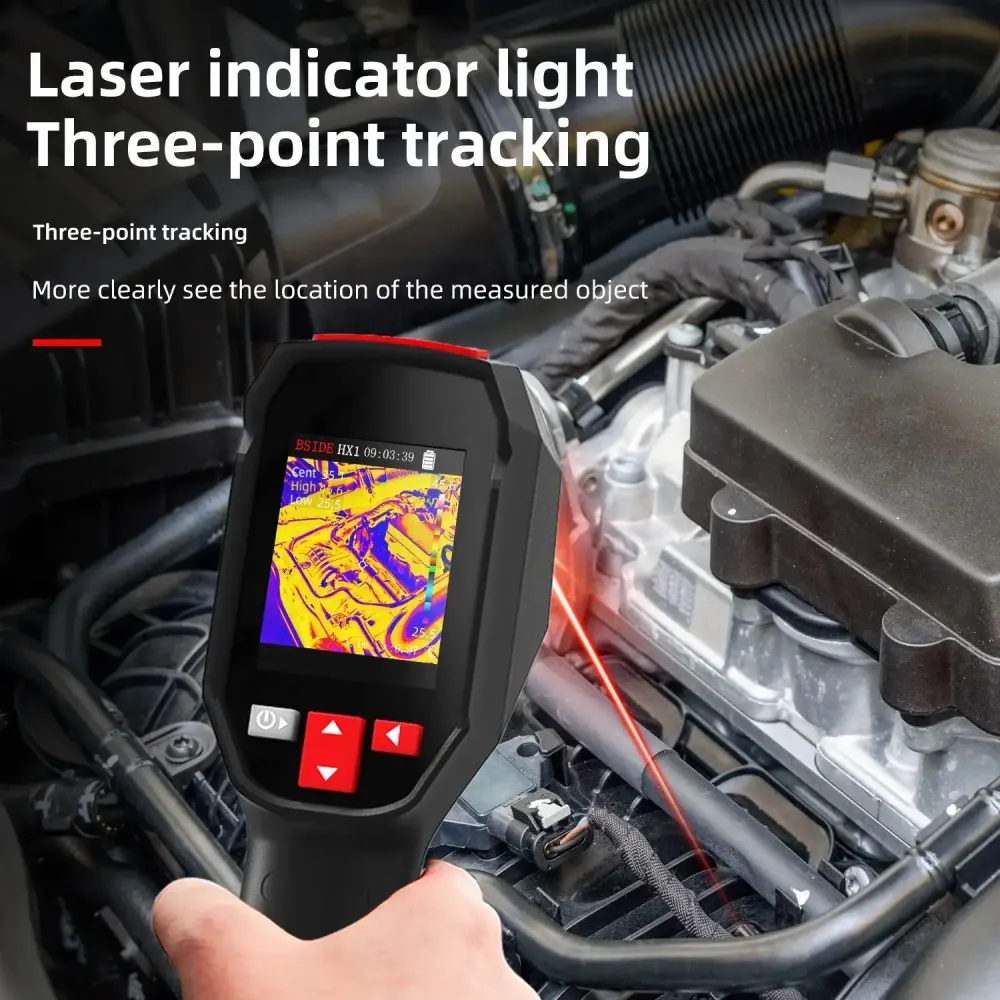

- Laser indicator/LED illumination
- Display size: 2.0–3.9 inches (actual 2.4″ LCD)

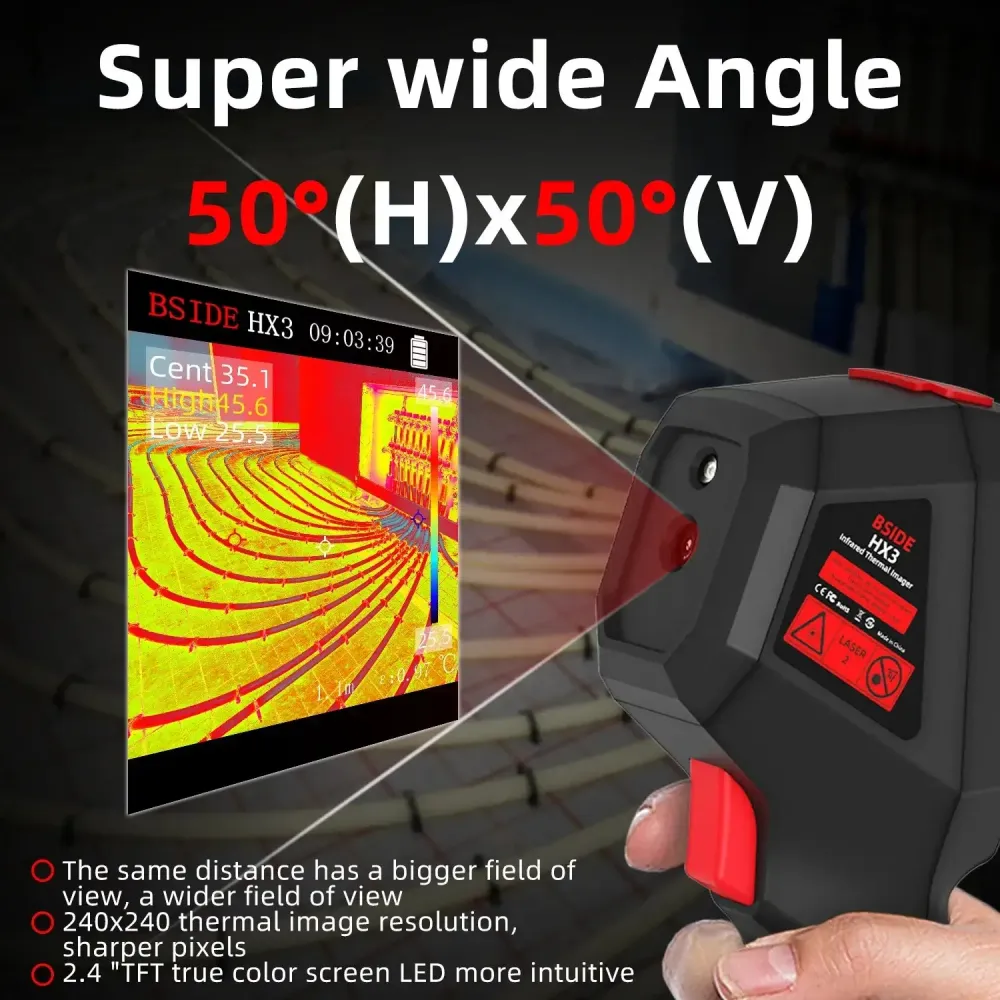

- FOV: 50 (H) × 50 (V) degrees / 72.1° diagonal
Package includes:
- BSIDE HX3 Thermal Imager
- High-quality EVA handbag
Warnings / Reminders
- Do not expose the device to water beyond its IP54 rating; avoid immersion.
- Operate within the specified temperature range (-20 °C to 550 °C) for accurate results.
- Handle with care—though designed for durability, avoid unnecessary impacts to preserve imaging accuracy.
- Ensure emissivity is correctly set for the material being inspected to prevent false readings.
Please note: All electronic and mechanical equipment, devices and machines sold to EU countries are CE certified and carry a two year warranty.
